Applications: Applicable to clean room and other area with stringent clean air requirements
Applicable conditions: Working temperature(ºC) ≤ 70(158ºF)
Features
1. Mini-pleat design, low resistance, operational cost saving
2. Wide application,space-saving
3. Ultra-thin design, installation space-saving
4. د موثريت: 99.95٪@MPPS (H13)، 99.995٪@MPPS (H14)
5. Mini pleat of fiberglass media with lowest resistance
6. Individually tested for certificated leak proof
7. Gel seal design
8. Hotmelt separators
9. Lightweight and compact
10. Unique construction
11. Energy saving design
Product Details

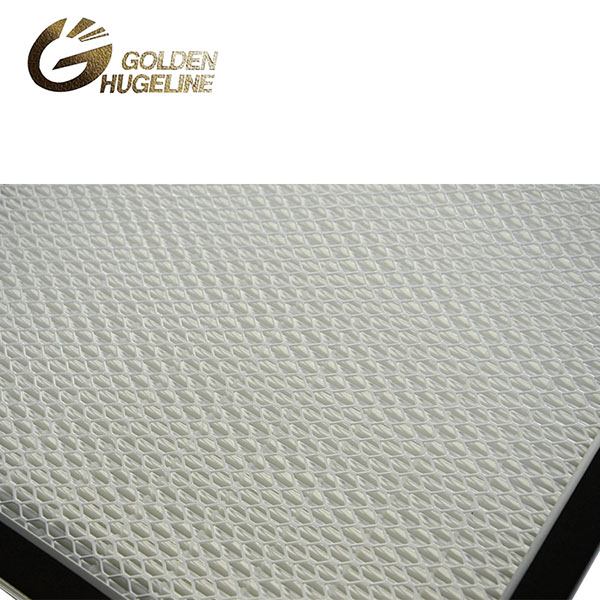

Type: Mini-pleat HEPA filter
Gasket: CR,EVA,EPDM,PU
چوکاټ: Extruded aluminum.
Face guard: Baking finish
Separator: Hot-melt beads.
Filter class(EN1822):H12, H13,H14
Media: H&V Glass fiber, PTFE Recommended final pressure drop.: 500 Pa
Temperature / Humidity: 70°C / 100% RH
- Industrial HEPA Air Filter one piece in poly bag to be put in one box, 100 boxes to be packed in one carton, Or as per customer’s packing instruction.
- بندر
- Tianjin، شانګهای، Ningbo، ګوانګجو، Qingdao
موږ نه یوازې د مختلفو عادي اندازه مینی-pleat HEPA چاڼګر هر ډول توليد کړي، بلکې د دودیزه اندازه مینی-pleat HEPA filter.Please هر ډول ومني غوره څه اندازه تاسو غواړئ چې د لاندني جدول ته مراجعه واخلي،
| د نمونوي ډډې (W × × H D) ملي متري | Filter ټولګي EN1822 | د اسراع / فشار څاڅکی m³ / h / PA (± 15٪) | واحد حجم m³ |
| 610x610x50 | H13 | 603/130 | 0،041 |
| 1170X1170X50 | H13 | 2218/125 | 0،082 |
| 1170x570x50 | H13 | 1080/130 | 0،073 |
| 610x610x70 | H13 | 603/110 | 0،026 |
| 1170X1170X70 | H13 | 2218/105 | 0،052 |
| 1170x570x70 | H13 | 1080/110 | 0،046 |
| 610x610x90 | H13 | 603/85 | 0،033 |
| 1170X1170X90 | H13 | 2218/80 | 0،066 |
| 1170x570x90 | H13 | 1080/85 | 0،060 |
| 610x610x50 | H14 | 603/140 | 0،041 |
| 1170X1170X50 | H14 | 2218/135 | 0،082 |
| 1170x570x50 | H14 | 1080/140 | 0،073 |
| 610x610x70 | H14 | 603/120 | 0،026 |
| 1170X1170X70 | H14 | 2218/115 | 0،052 |
| 1170x570x70 | H14 | 1080/120 | 0،046 |
| 610x610x90 | H14 | 603/95 | 0،033 |
| 1170X1170X90 | H14 | 2218/90 | 0،066 |
| 1170x570x90 | H14 | 1080/95 | 0،060 |
