Working principle of truck fuel water separator and introduction of vehicle fuel water separator
The current development of the vehicle industry is following the growth of the population, and the momentum is getting stronger and stronger. As the population increases, there are more trucks for different needs. Regarding trucks, today I will introduce the working principle of the fuel water separator for trucks.
Working principle of truck fuel water separator: working principle
After the jet fuel enters the filter separator, it is first collected in the aluminum tray, and then dispersed into the coalescing filter element from the inside to the outside. The first step is to filter out solid impurities through the filter layer, and the second step is through the demulsification layer to remove the oil and water in the emulsified state. Separation, the third step is to coalesce the tiny water droplets into large water droplets by the coalescence layer, and settle in the water collection tank; then the small water droplets that can be coalesced in the future are further separated and settled in the sedimentation tank by the water repellency of the separation filter element. The valve is discharged. The clean fuel is collected in the secondary tray through the separation filter element and discharged from the outlet of the filter separator.
Working principle of truck fuel water separator: function
The fuel water separator for trucks is a kind of fuel filter. Its main function is to remove the water in the fuel, so as to reduce the failure of the fuel injection nozzle and prolong the service life of the engine. The principle is mainly based on the density difference between water and fuel, using the principle of gravity sedimentation to remove impurities and water separator, there are diffusion cones, filters and other separation elements inside. The fuel water separator also has other functions, such as pre-heating the fuel to prevent wax formation and filtering impurities.
In terms of separation principle, there are membrane filtration fuel water separators, fuel water separators using lipophilic materials, non-powered fuel water separators with different specific gravity and stratification, and pharmacological demulsification fuel water separators; fuel water separators are mainly used in the petrochemical industry, Automobile industry, sewage treatment industry, etc.
Working principle of truck water separator: vehicle fuel water separator
The fuel water separator for trucks is an instrument that separates the oil and water. The mechanism is mainly divided into the oil-in-oil dewatering separator and the water-removing oil separator; from the use, it is mainly divided into industrial grade fuel water separator, commercial fuel water separator and There are several types of household fuel water separators; in terms of separation principle, there are membrane filter fuel water separators, fuel water separators using lipophilic materials, non-powered fuel water separators with different specific gravities, and demulsification fuel water separators with pharmacological effects;
The fuel water separator for trucks is a kind of fuel filter. Its main function is to remove the moisture in the diesel, so as to reduce the failure of the fuel injection nozzle and prolong the service life of the engine. The principle is mainly based on the density difference between water and fuel, using the principle of gravity sedimentation to remove impurities and water separator, there are diffusion cones, filters and other separation elements inside. The fuel water separator also has other functions, such as pre-heating the fuel to prevent wax formation and filtering impurities.
After reading the introduction of the editor, do you have a certain understanding of the working principle of truck fuel water separator? So do you like the content knowledge recommended by the editor today? I hope that all the friends who are interested in this issue can read it all~ I sincerely hope that the introduction of the editor can help everyone.

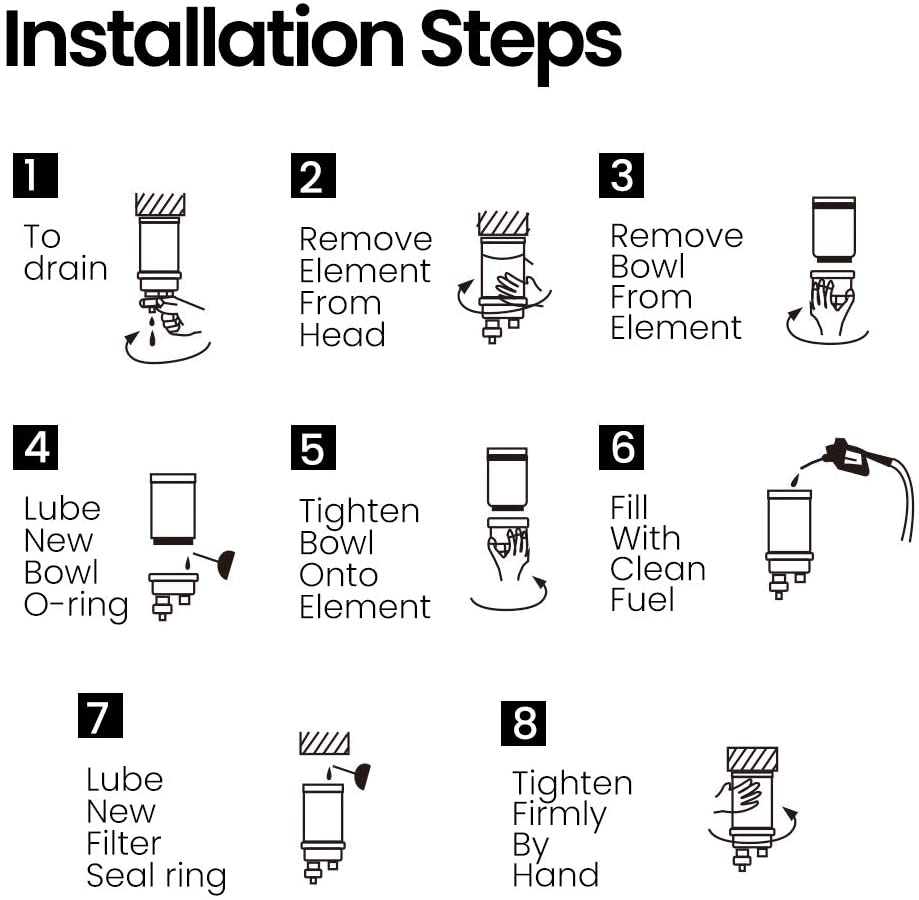

The picture below shows how to replace the fuel water separatorfilter in general, which may help you！
